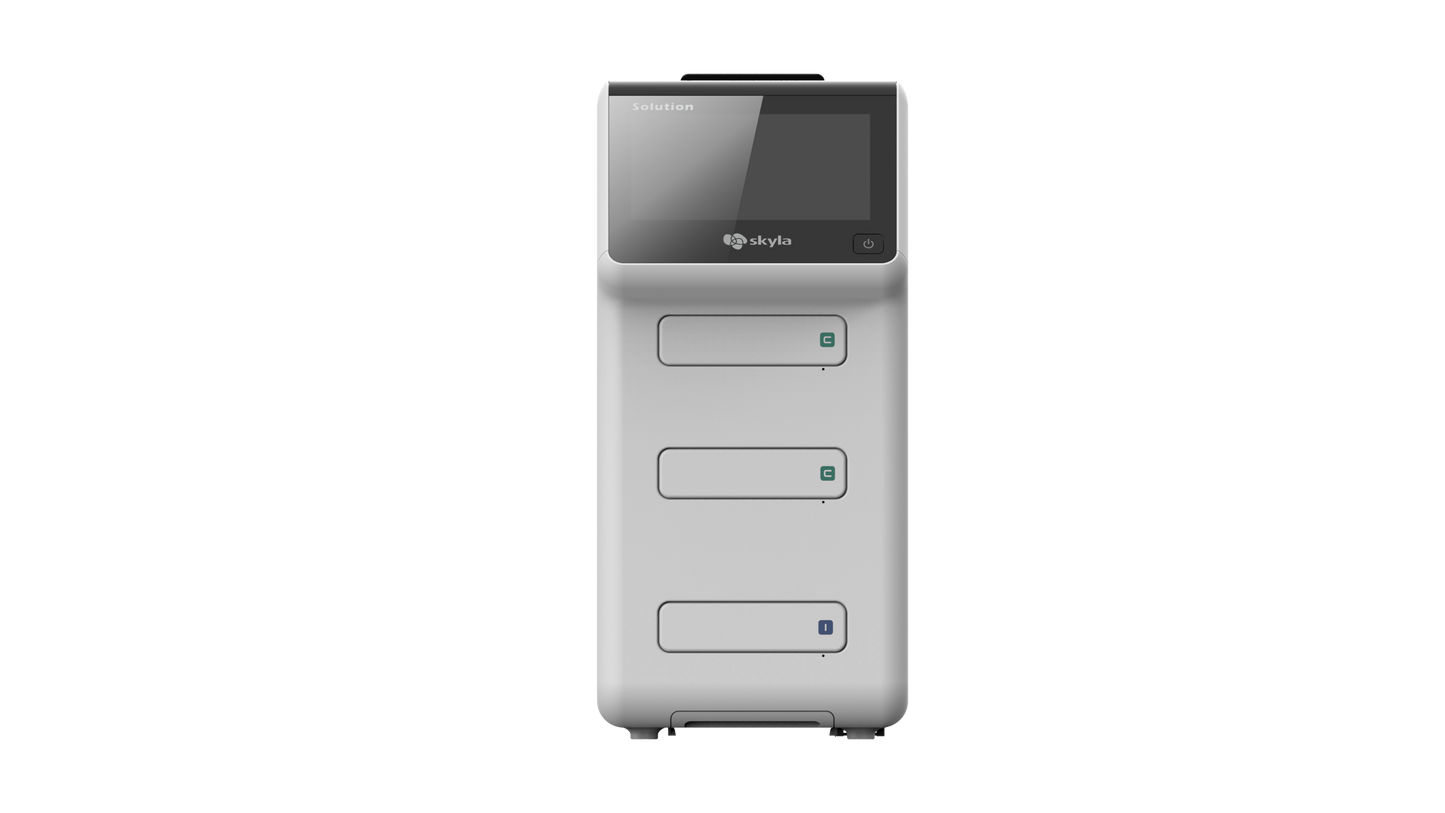

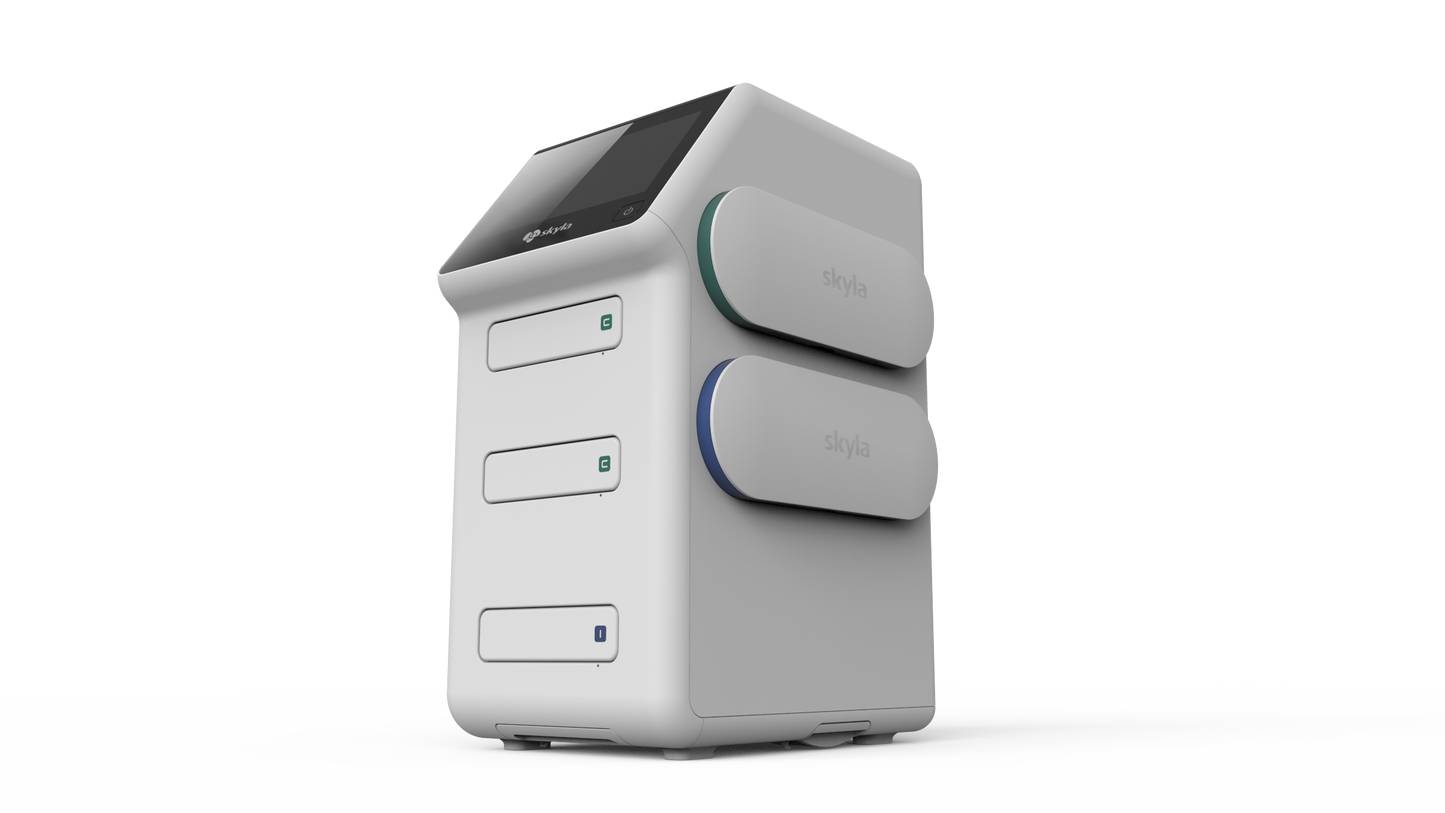

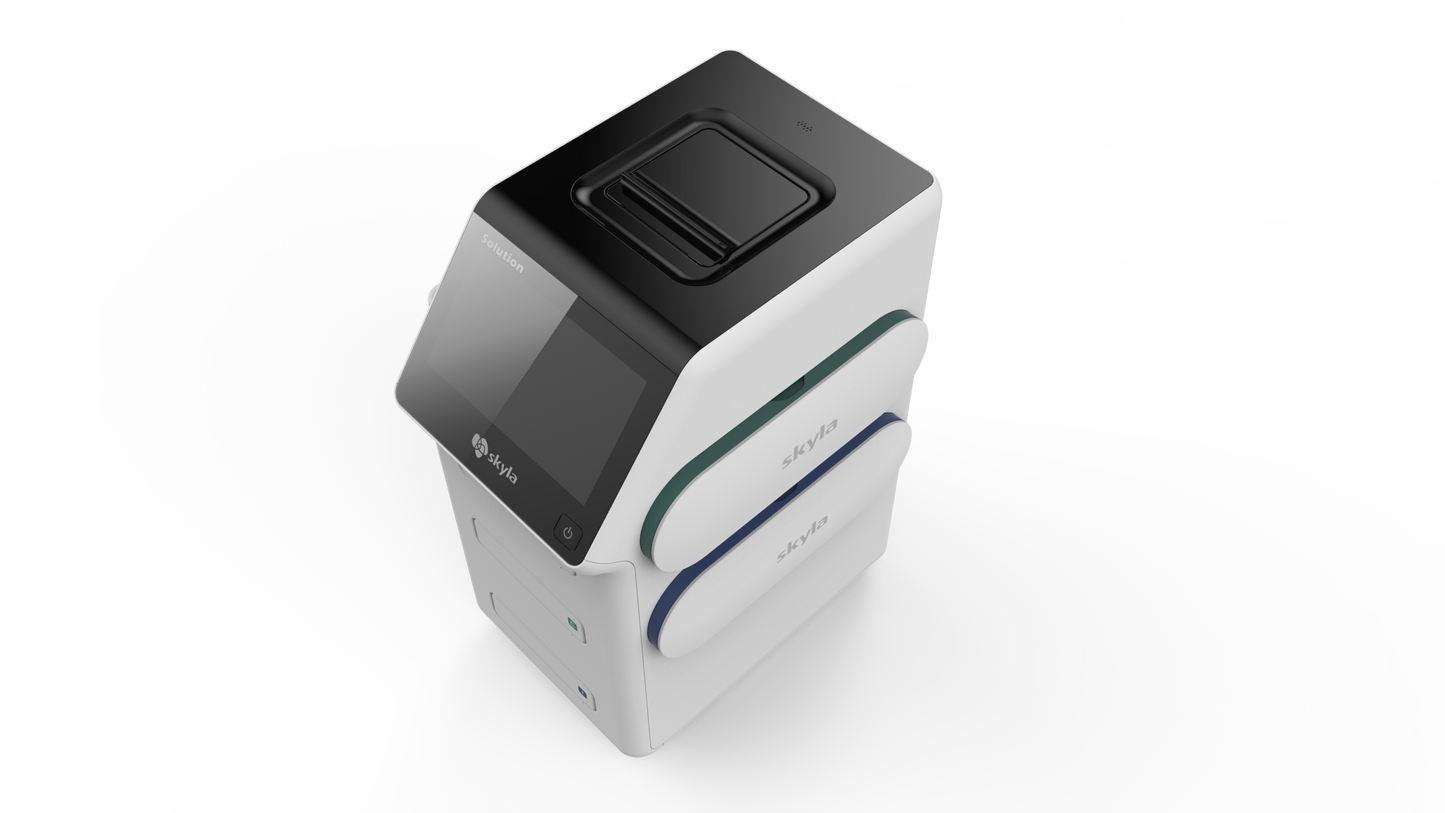

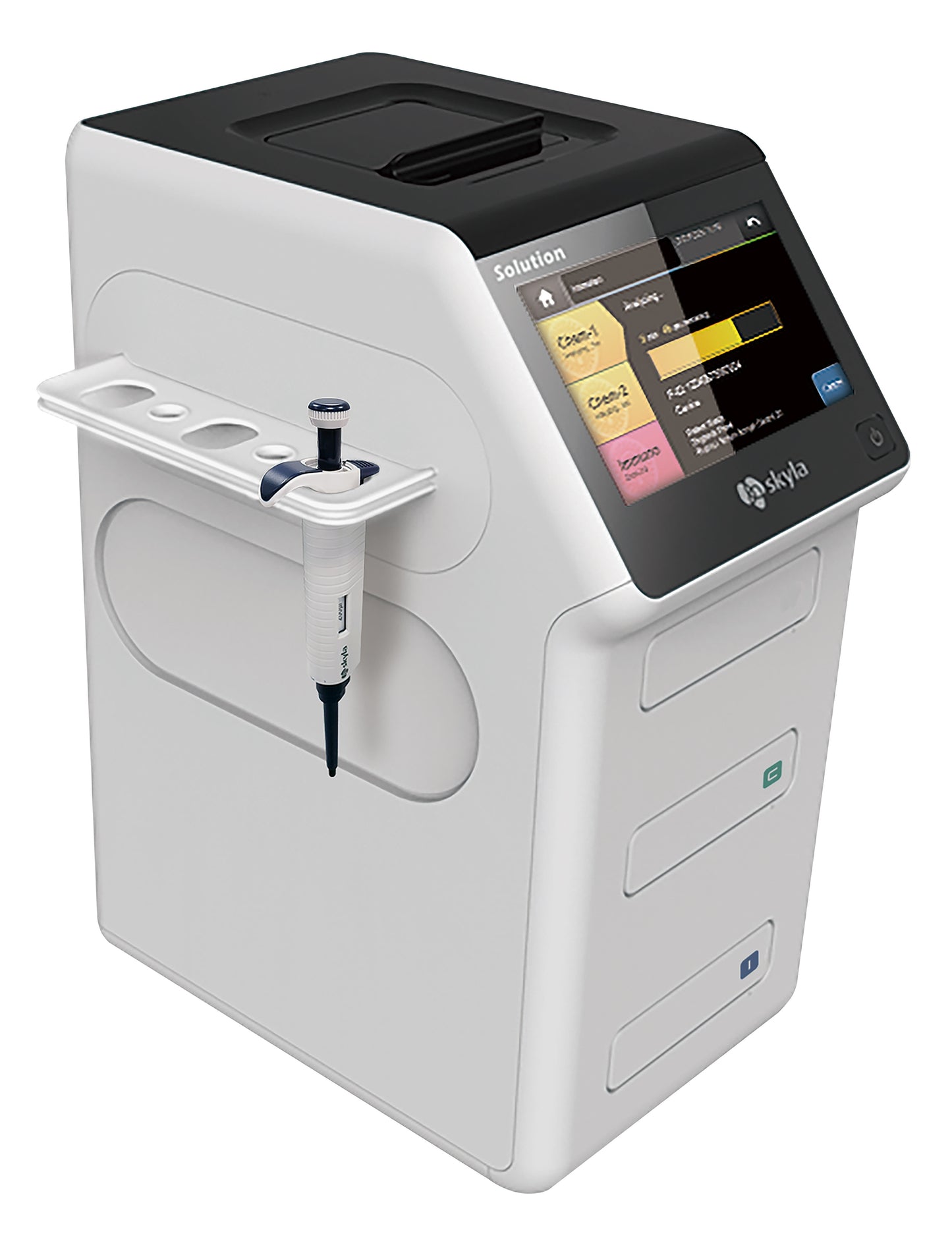

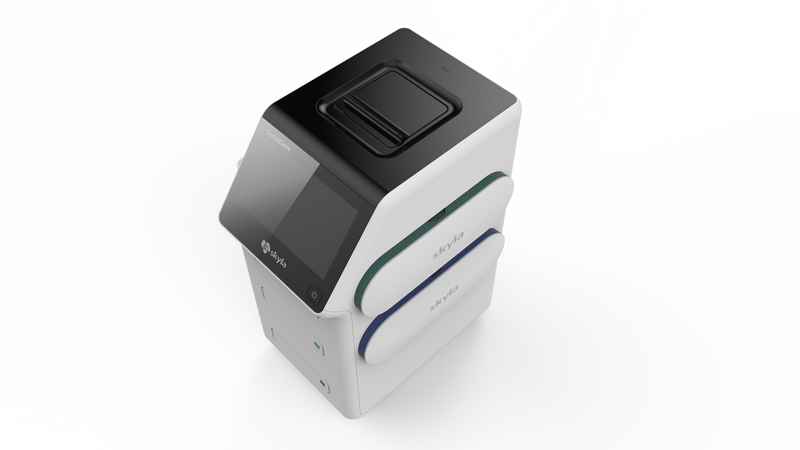

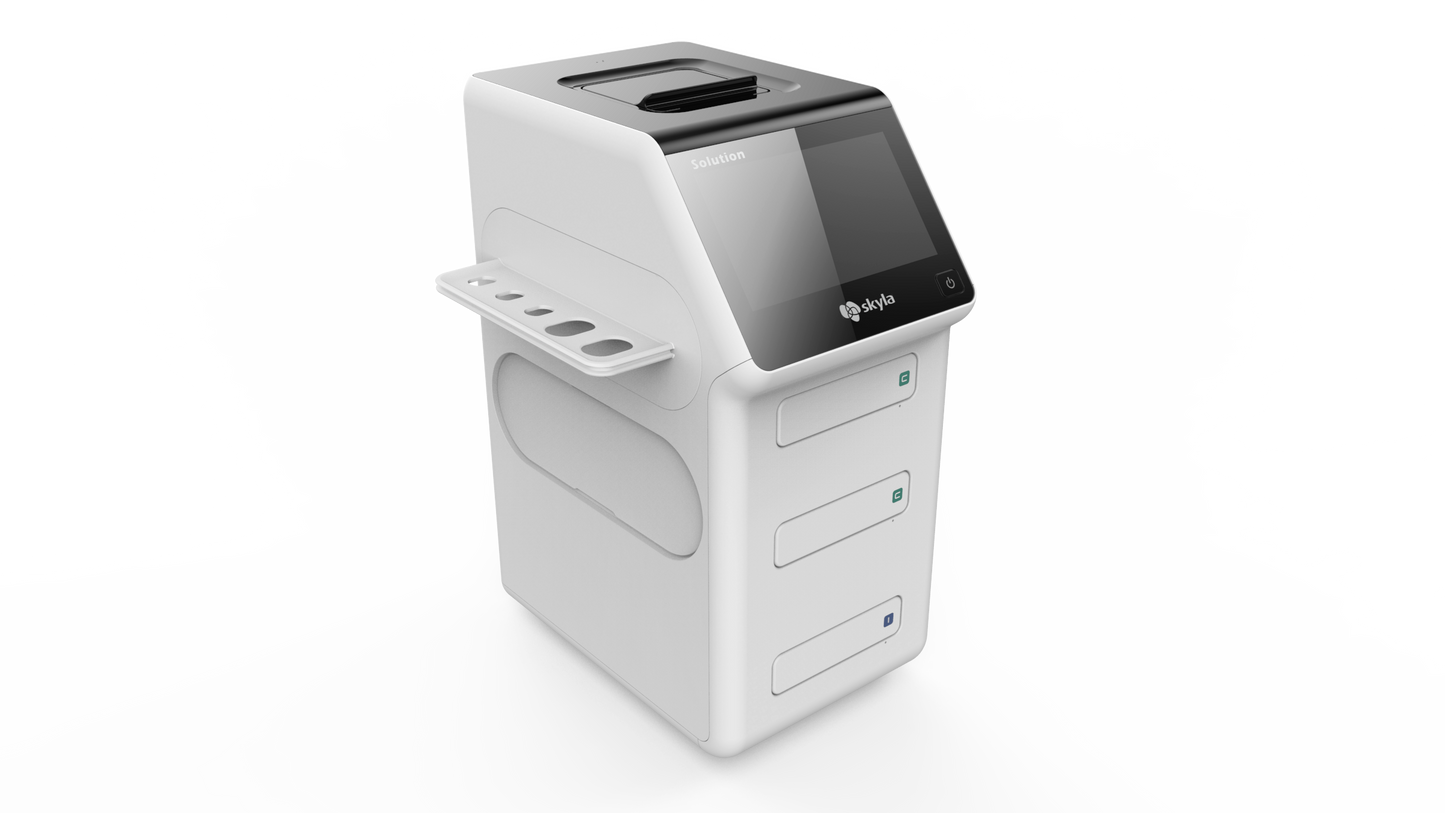

Solution – combine with all immunoassay and chemistry methodology in one device to
offer the best efficiency, accessibility and accuracy of veterinary clinical blood test.
Working Environment 5°C ~ 35 °C
High endurance and reliable performance to wide range working environment.
3 Specimens Test at One Time
- One Immunoassay + Two Chemistry
- Three Chemistry
All Methodology in one Device
- ELISA
- Turbidimetry
- Colorimetry

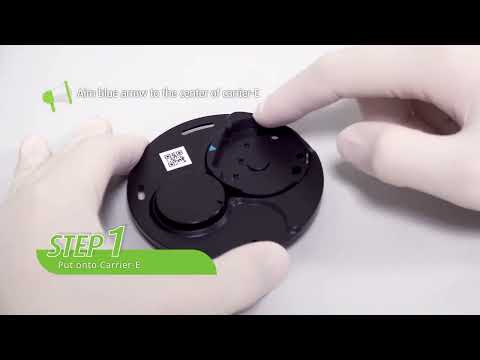

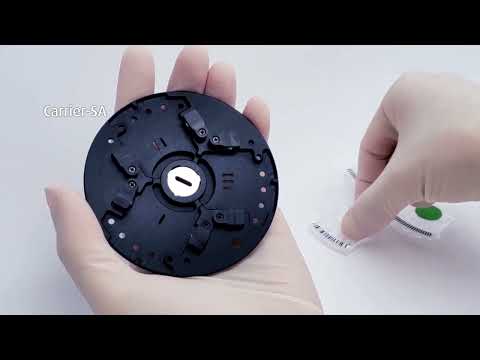

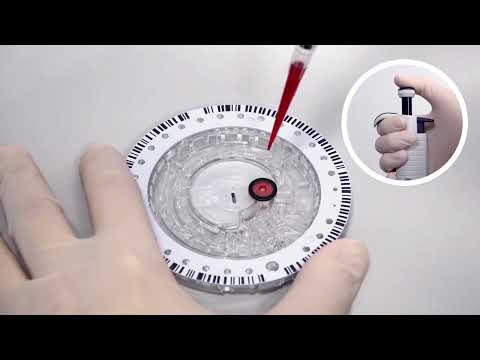

Microfluidic Chip Technique
Employs unique fluid dynamics and mechanical design to accelerate the efficient of blood sample separation.
Skyla Data Manager PC Software supported
Skyla provides self-developed software for users to conveniently manage patients' test results in PC.
Fully Automated Operations
All steps are designed automatically from checking the validity of cartridge to printing the results.
Intelligent Interference Eliminating (iiE) System
Use multiple wavelengths LEDs and big data, to eliminate the effect of sample lipemia, hemolysis and Icterus interference and provide the high accuracy results.

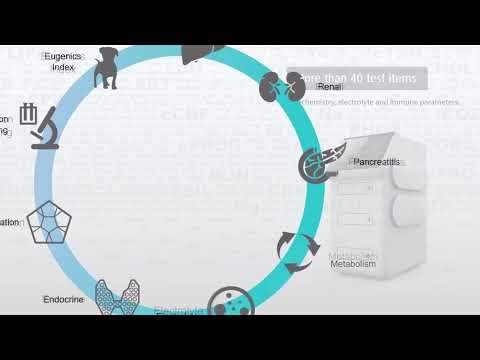

| Solution Available Items | |
| Renal Function | BUN, CREA, UA, UREA#, B/C# (BUN/CREA), UPC# (UPRO/UCRE) |
| Liver Function | ALB, ALT (GPT), AST (GOT), TBIL, GGT (γGT), BA (Bile Acid), NH3, GLOB# (TP-ALB), A/G# (ALB/GLOB) |
| Pancreatitis Marker | AMY (AMYL), LIPA, cPL* (canine PL)* |
| Cardiac Marker | NT-proBNP* |
| Carbohydrate Metabolism | GLU, FRU, cA1C (canine HbA1c) |
| Lipid Metabolism & others | TRIG, CHOL (TCHOL), TP, ALP (ALKP), CPK (CK), LAC |
| Endocrine | TT4 (Total T4), cTSH (canine TSH), cCOR (canine Cortisol), cPROG (canine Progesterone) |
| Inflammation Makers | cCRP (canine CRP), SAA (feline/equine SAA), cPL* |
| Medication Monitoring | PHBR (Phenobarbital) |
| Electrolyte | Na, K, Cl, Ca, PHOS, Mg, tCO2, C-Ca#, AGap# (Anion Gap) |
| Available Panel & Items | |
|
Thyroid/T4 Panel (2) |
T4, CHOL |
| Diabetes Panel (4+2) | FRU, GLU, TP, ALB, GLOB#, A/G# |
| Renal Panel (9+5) | ALB, BUN, CREA, PHOS, Ca, Na, K, Cl, tCO2, B/C#, Na/K#, C-Ca#, UREA#, AGap# |
| Liver Plus Panel (10+3) | ALP, ALT, AST, BUN, TP, ALB, GGT, TBIL, BA, CHOL, GLOB#, A/G#,UREA# |
| Electrolytes Panel (4+2) | Na, K, Cl, tCO2, Na/K#, AGap# |
| Preanesthetic Panel (7+4) | ALB, ALP, ALT, BUN, CREA, GLU, TP, GLOB#, A/G#, B/C#, UREA# |
| Diagnosis Panel (13+5) | ALB, ALP, ALT, AMY, AST, BUN, CHOL, CREA, GLU, TBIL, TP, Ca, PHOS, GLOB#, A/G#, B/C#, C-Ca#, UREA# |
| Diagnosis Plus Panel (13+6) | ALP, ALT, ALB, BUN, CREA, GLU, TP, AMY, TBIL, Ca, PHOS, Na, K, GLOB#, A/G#, B/C#, Na/K#, UREA#, C-Ca# |
| Diagnosis-II Panel (14+5) | ALB, ALP, ALT, AMY, BUN, CHOL, CREA, GLU, TBIL, TP, Ca, PHOS, LIPA, GGT, GLOB#, A/G#, B/C#, C-Ca#, UREA# |
| Critical Care Panel (14+7) | ALB, ALP, ALT, BUN, CREA, GLU, TP, Ca, Na, K, Cl, tCO2, LAC, CPK, GLOB#, A/G#, B/C#, Na/K#, AGap#, C-Ca#, UREA# |
| Equine Panel (14+6) | ALP, AST, CREA, BUN, TP, GLU, ALB, TBIL, CPK, GGT, Ca, Na, K, tCO2, GLOB#, A/G#, B/C#, Na/K#, C-Ca#, UREA# |
| Large Animal Panel (14+5) | ALP, AST, BUN, TP, ALB, Ca, PHOS, CPK, GGT, Na, K, Cl, Mg, GLU, GLOB#, A/G#, Na/K#, C-Ca#, UREA# |
| Avian & Reptile Panel (12+4) | AST, TP, ALB, GLU, Ca, PHOS, Na, K, Cl, CPK, BA, UA, GLOB#, A/G#, Na/K#, C-Ca# |
| Single Assay Test | BUN, CREA, TBIL, LAC, NH3, Mg* |
| Dual Assay Test | Na+K+Na/K#, Ca+PHOS, AST+CPK, ALB+TP+GLOB#+A/G#, ALP+ALT, TRIG+CHOL, GGT+CPK, LIPA+AMY, UPRO+UCRE+UPC#, BA+CHOL |
|
Principle |
|
| Colormetric Method |
LEDs 340nm~940nm |
| Turbidimetry, ELISA | Laser or LEDs 340nm~650nm |
| Device | |
| User Interface | 8” TFT color LCD touch screen |
| Memory Capacity | 50,000 test results |
| Dimensions / Weight | 490(H) x 230(W) x 358(D) mm / 12kg |

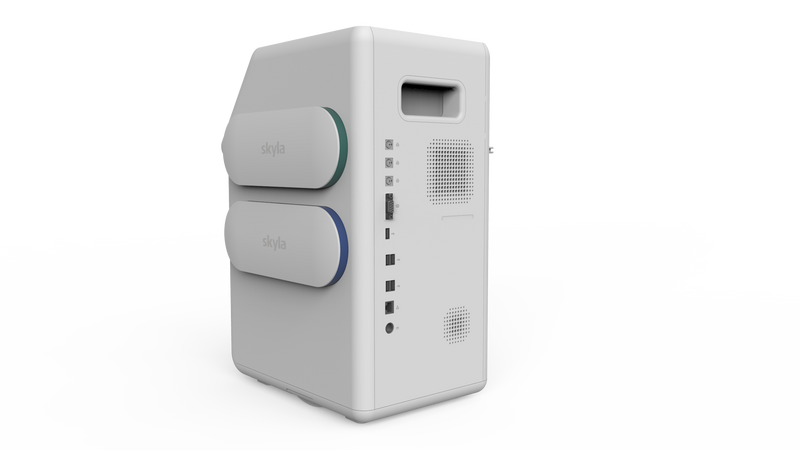

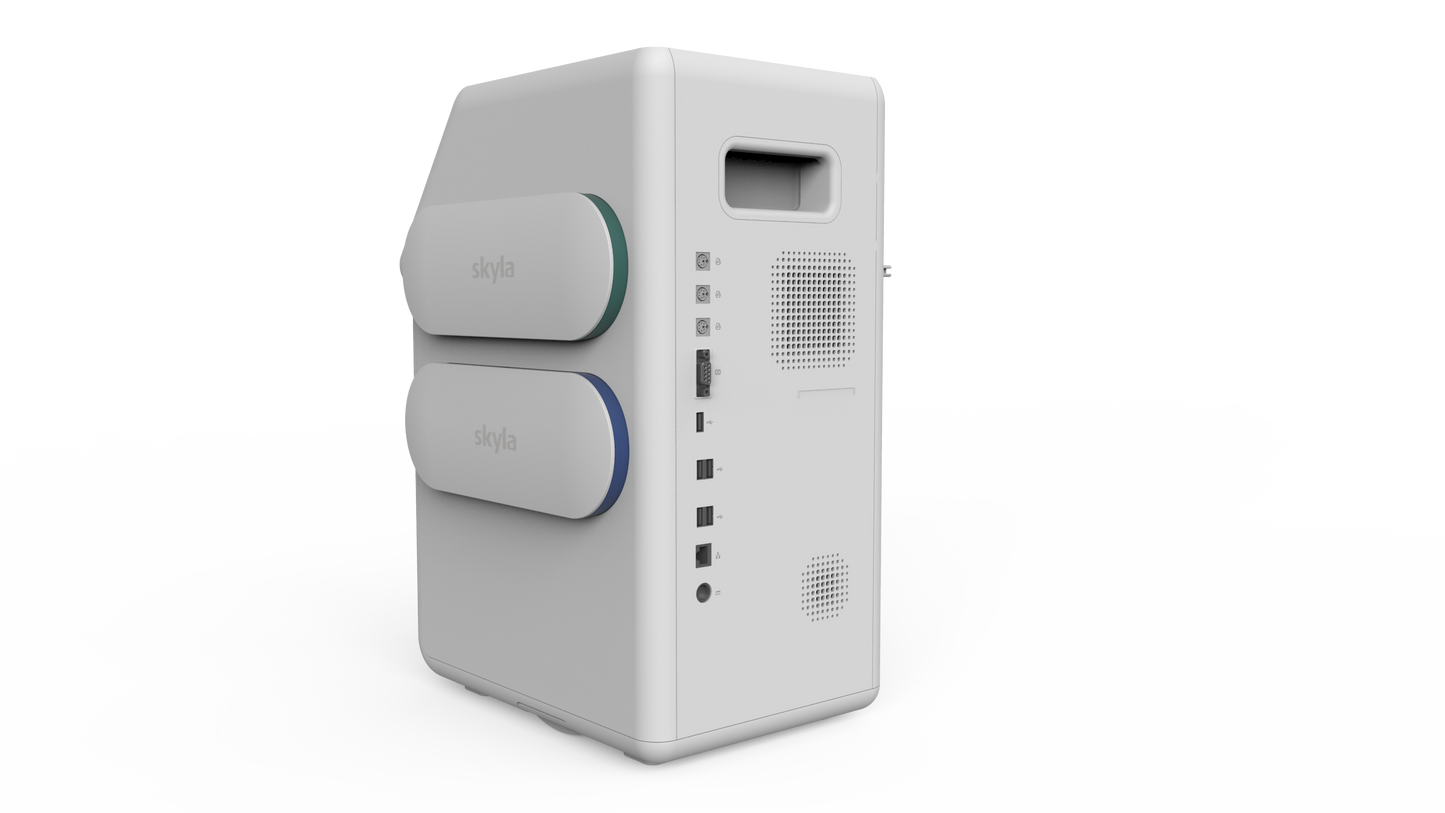

| Data Transmission | USB 2.0, 5 Ports Master, (USB2.0 Support Wi-Fi dongle 802.11 b/g/n), RS232, Ethernet 10/100Mbps |
| Printer | Built in thermal printer / External printer (Support PCL 3GUI, PCL5, PCL6 printers) |
| Sample & Panel | |
| Sample Type | Whole blood, plasma, serum (depends on methodology) |
| Sample Volume | 1-200μL (depends on test items) |
| Test Profile | Chemistry: panel, single assay, dual assay; Immunoassay: single item. |
| Measurement Time | Chemistry panel: up to 15 tests in 12 ~ 15 mins; Immunoassay Item: 6~25 mins (depends on methodology) Chemisty single / dual assay: up to 6 tests in 12 mins |
| Operation Condition | |
| Temperature / Humidity | 5 - 35°C / 0 - 95% |
