SKYLA VB1 analysaattori

Hinnat alv 0%

5.983,20€
5.983,20€
Tarjous Loppuunmyyty

DiaSystem Vet

Tuotekoodi:

Tästä testivalikoimaan

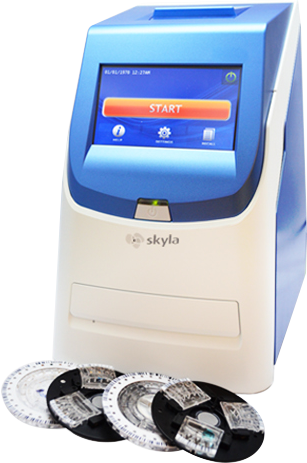

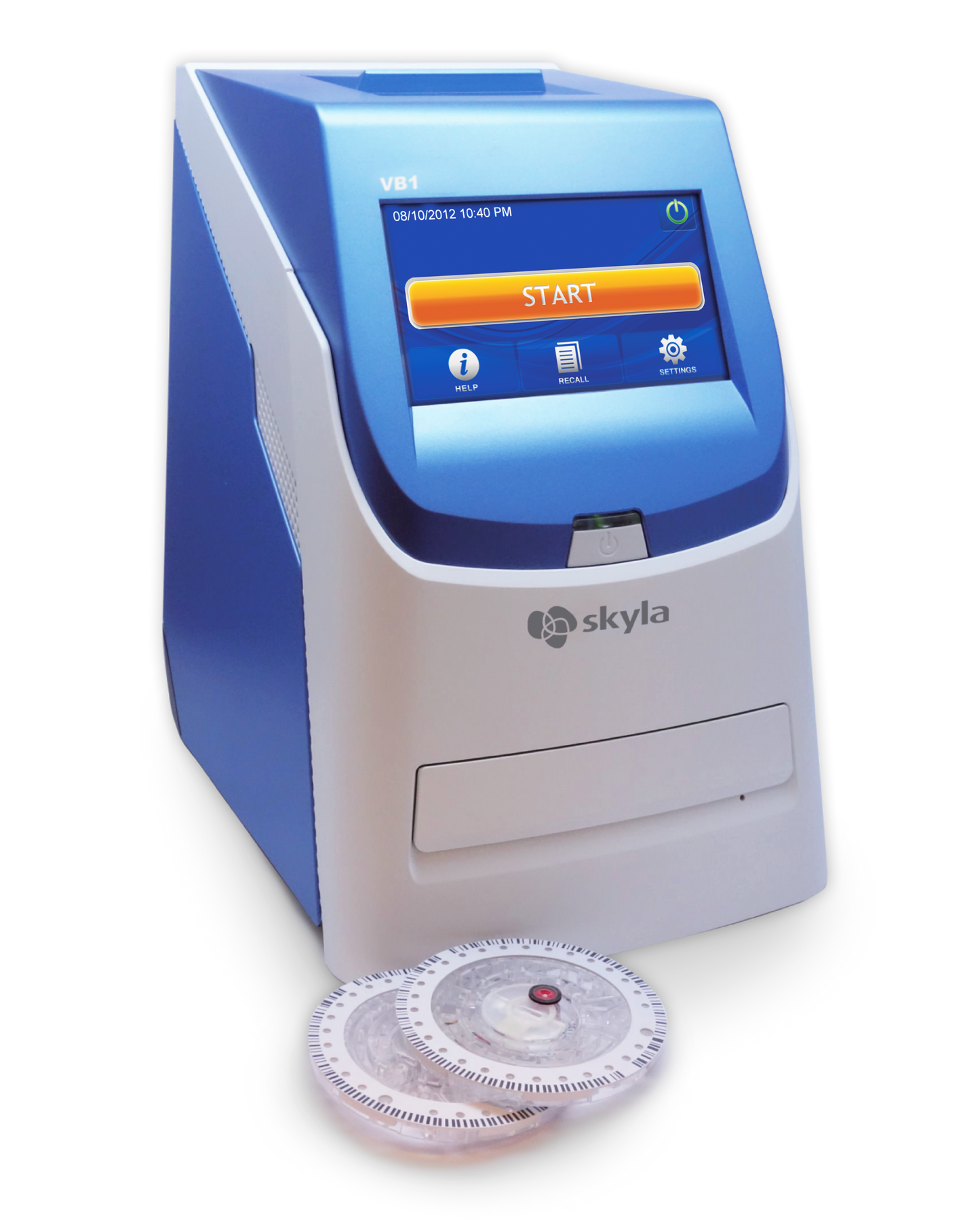

VB1 is a portable veterinary clinical chemistry analyzer designed to provide smart solutions to improve efficiency of blood tests and meet the needs of veterinary clinics.

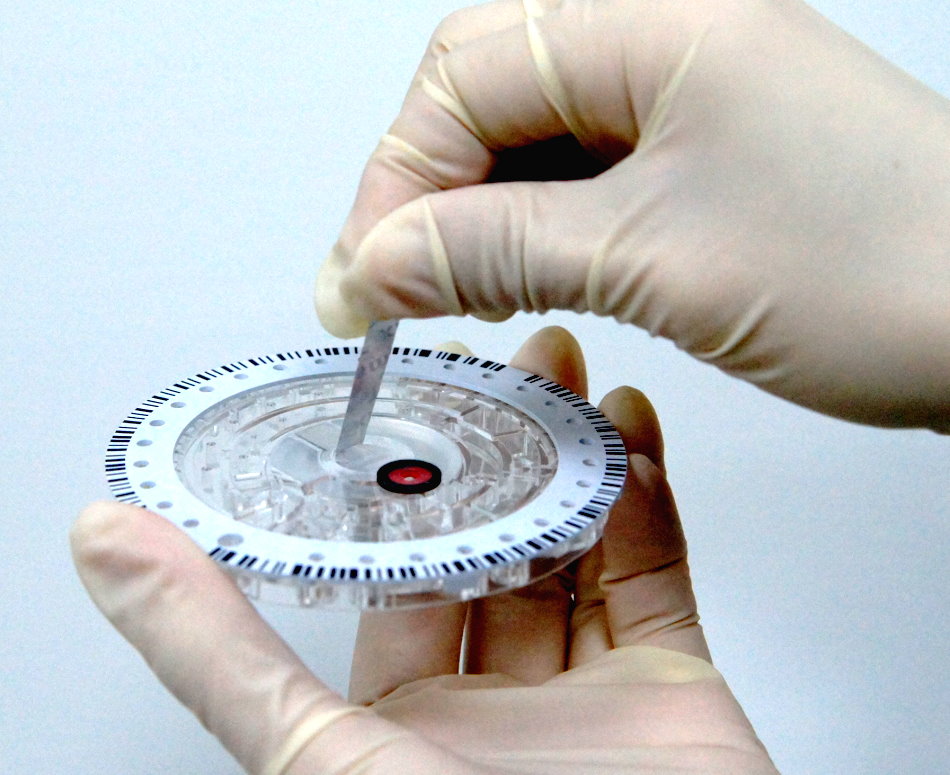

Simple 3-Step Procedures

Fully automated Operations

Multi-functional intregration

All-in-one Device

  • The device combines biochemistry, electrolyte and electrolyte test functions, which helps users save time, space and money.

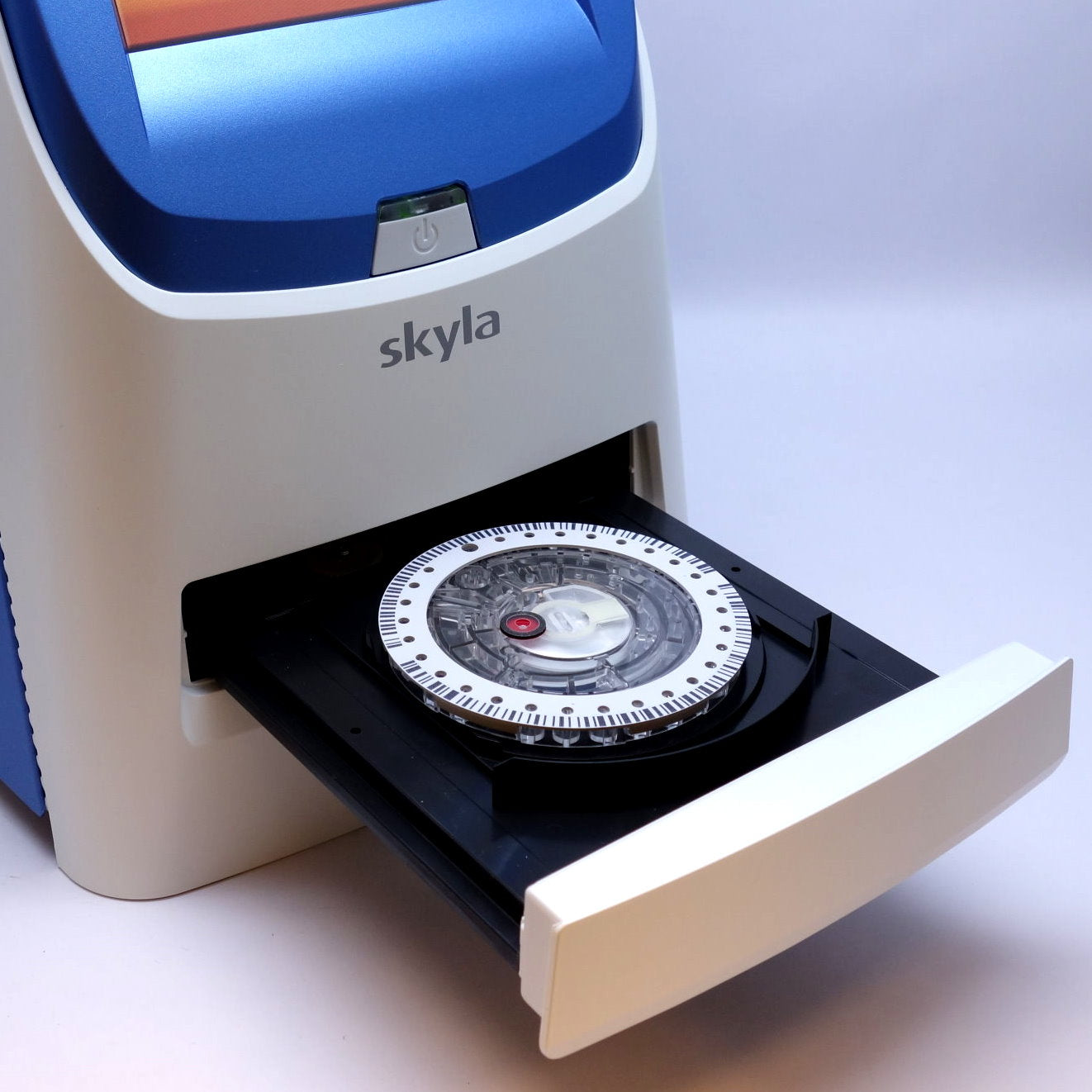

Built-in Centrifuge

  • Whole blood sample can be measured without pre-treatment.

Easy to Carry/ Only 5.5kg

  • The device is designed in portable and space saving ways with only 5.5kg.

VB1 Available Items
Renal Function BUN, CREA, UA, UREA#, B/C# (BUN/CREA),  UPC# (UPRO/UCRE)
Liver Function ALB, ALT, AST, TBIL, GGT,
BA, NH3, GLOB# (TP-ALB), A/G# (ALB/GLOB)
Pancreatitis Marker AMY, LIPA
Carbohydrate, Lipid Metabolism & others GLU, FRU, TRIG, CHOL, TP, ALP, CPK, LAC
Endocrine

T4
Electrolyte  Na, K, Cl, Ca, PHOS, Mg, tCO2,  pH*, C-Ca#, AGap#

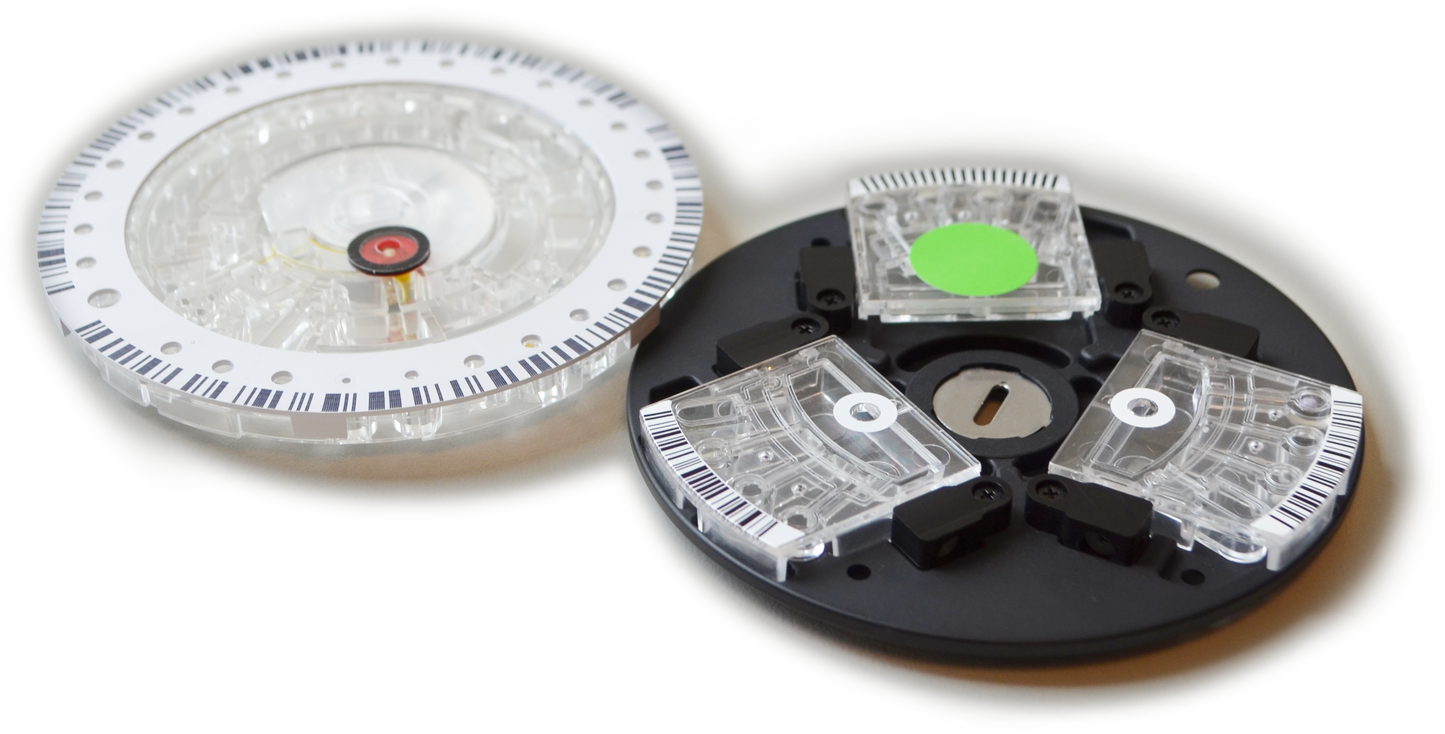

Available Panel & Items
Thyroid/T4 Panel (2) T4, CHOL
Diabetes Panel (4+2) FRU, GLU, TP, ALB, GLOB#, A/G#
Renal Panel (9+5) ALB, BUN, CREA, PHOS, Ca, Na, K, Cl,  tCO2, B/C#, Na/K#, C-Ca#, UREA#,  AGap#
Liver Plus Panel (10+3) ALP, ALT, AST, BUN, TP, ALB, GGT, TBIL, BA, CHOL, GLOB#, A/G#,UREA#
Electrolytes Panel (4+2) Na, K, Cl, tCO2, Na/K#, AGap#
Preanesthetic Panel (7+4) ALB, ALP, ALT, BUN, CREA, GLU, TP, GLOB#, A/G#, B/C#, UREA#
Diagnosis Panel (13+5) ALB, ALP, ALT, AMY, AST, BUN, CHOL, CREA, GLU, TBIL, TP, Ca, PHOS, GLOB#, A/G#, B/C#, C-Ca#, UREA#
Diagnosis Plus Panel (13+6) ALP,  ALT, ALB, BUN, CREA, GLU, TP, AMY, TBIL, Ca, PHOS, Na, K, GLOB#, A/G#, B/C#, Na/K#, UREA#, C-Ca#
Diagnosis-II Panel (14+5) ALB, ALP, ALT, AMY, BUN, CHOL, CREA, GLU, TBIL, TP, Ca, PHOS, LIPA, GGT, GLOB#, A/G#, B/C#, C-Ca#, UREA#
Critical Care Panel (14+7) ALB, ALP, ALT, BUN, CREA, GLU, TP, Ca, Na, K, Cl, tCO2, LAC, CPK, GLOB#, A/G#, B/C#, Na/K#, AGap#, C-Ca#, UREA#
Equine Panel (14+6) ALP, AST, CREA, BUN, TP, GLU, ALB, TBIL, CPK, GGT, Ca, Na, K, tCO2, GLOB#, A/G#, B/C#, Na/K#, C-Ca#, UREA#
Large Animal Panel (14+5) ALP, AST, BUN, TP, ALB, Ca, PHOS, CPK, GGT, Na, K, Cl, Mg, GLU, GLOB#, A/G#, Na/K#, C-Ca#, UREA#
Avian & Reptile Panel (12+4) AST, TP, ALB, GLU, Ca, PHOS, Na, K, Cl, CPK, BA, UA, GLOB#, A/G#, Na/K#, C-Ca#
Single Assay Test BUN, CREA, TBIL, LAC, NH3, Mg*
Dual Assay Test Na+K+Na/K#, Ca+PHOS, AST+CPK, ALB+TP+GLOB#+A/G#, ALP+ALT, TRIG+CHOL, GGT+CPK, LIPA+AMY, UPRO+UCRE+UPC#, BA+CHOL

Principle
Colormetric Method LEDs 340nm~940nm wavelength
Sample & Panel
Test Profiles Panels, single assay tests and dual assay tests
Measurement Time Panel: up to 15 tests in 15 min.
Single / Dual assay test: Up to 6 tests in 12 min.

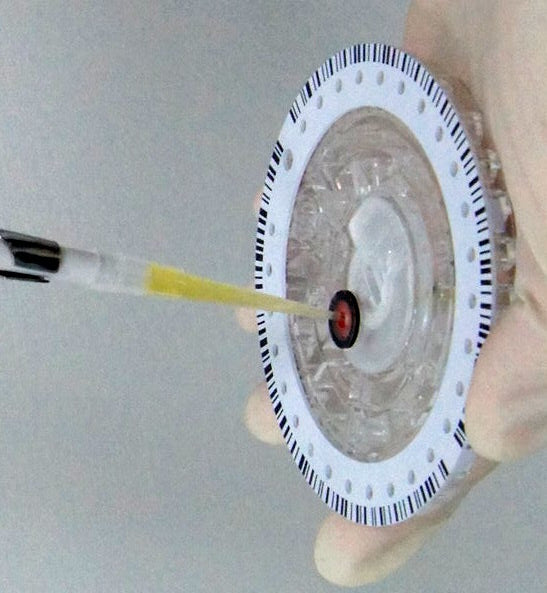

Sample Type & Volume  200 μL Whole blood (PCV<60%), plasma or serum
System Design
User Interface 5 inch color LCD touch screen
Internal Memory Store up to 50,000 analysis results
Printer Built in thermal printer or external USB printer (PCL 3GUI, PCL6)
USB Socket USB type A (Host) for external USB Printer,
USB flash drive (FAT)
Data transmission to PC RS232 serial port or RJ45 (LAN )
Dimensions 233 (W) X 285 (D) X 300 (H) mm
Weight 5.5 kg
Operating Condition
Temperature / Humidity 10 to 32˚C / 5 to 95 %

SKYLA VB1 esite

SKYLA VB1 LIPA esite

SKYLA VB1 Vet handbook

SKYLA VB1 T4 Diag flow manual

SKYLA VB1 Diabetes Panel
