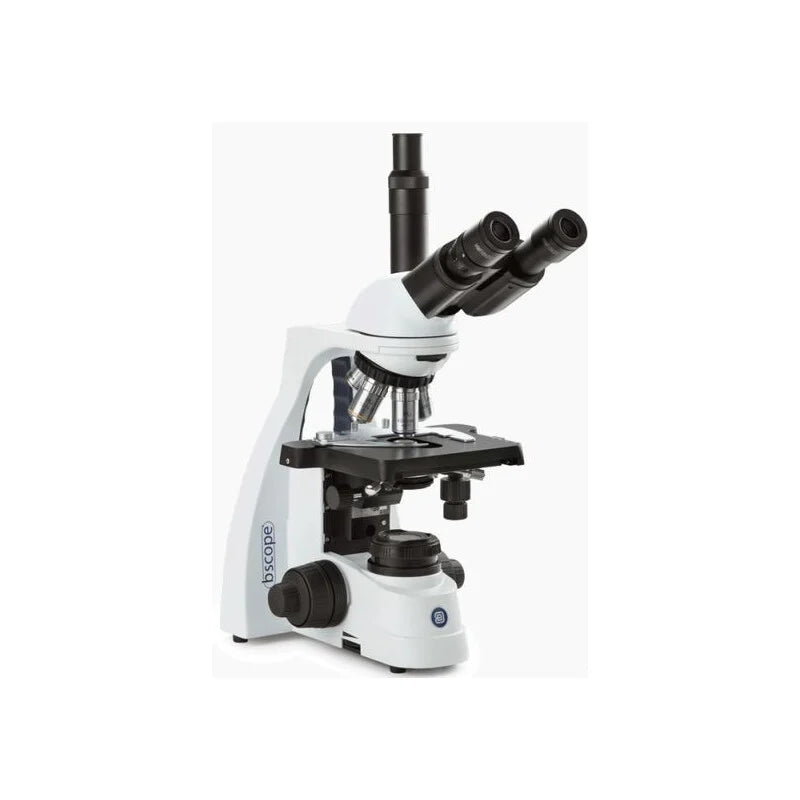

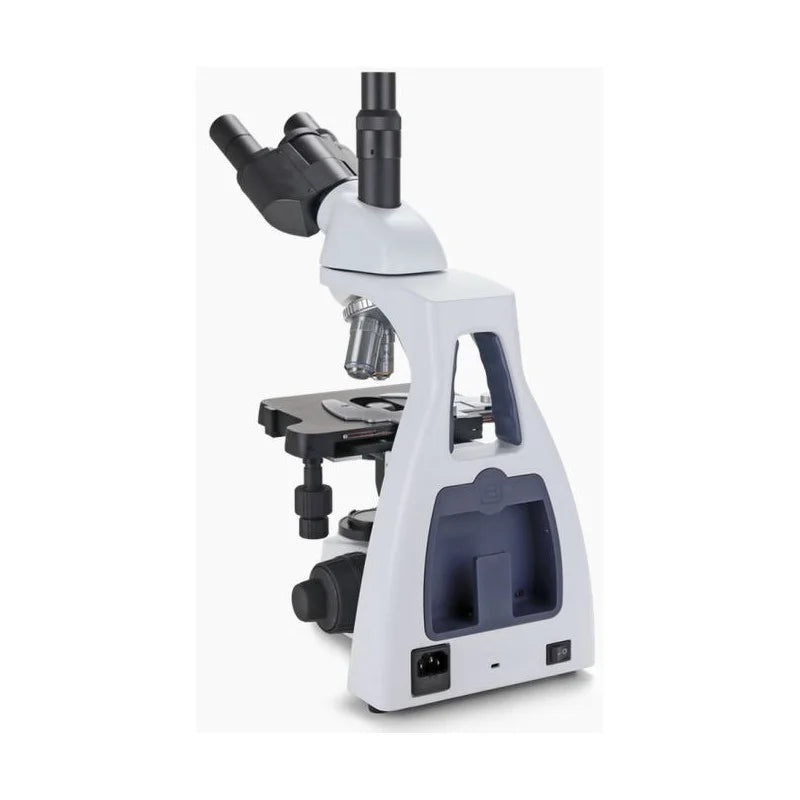

bScope trino, trinokulaarimikroskooppi

Hinnat alv 0%

Normaalihinta 1.016,75€
Normaalihinta Myyntihinta 1.016,75€
Alennusmyynti Loppuunmyyty



The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20 mm eyepieces and objectives for bright field, phase contrast and dark field

The design of the bScope is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. Phase contrast and cardioïd mirror dark field models are available. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage

  • Medical device class I
  • For education and laboratories
  • HWF 10x/20 mm eyepieces
  • Reversed nosepiece with slot for polarization filter
  • Rackless integrated X-Y mechanical stage
  • 3 W LED illumination with rechargeable batteries
  • Integrated carrying grip
  • Provided with APL (Anti-bacterial Protection Layer)

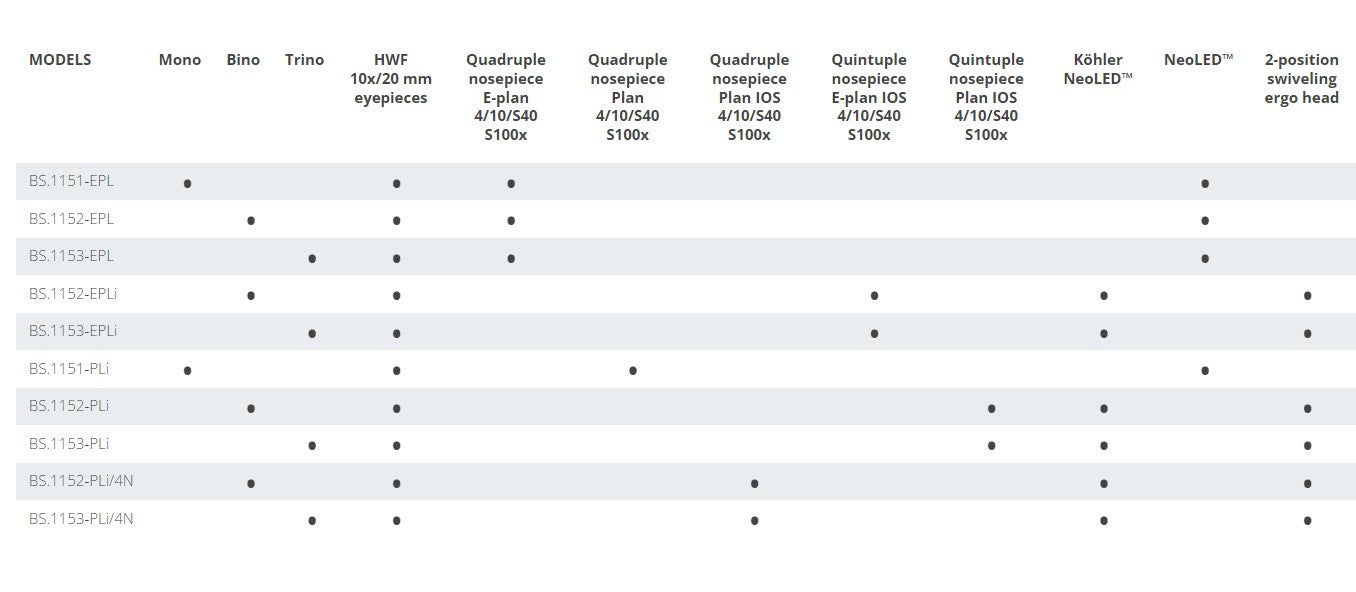

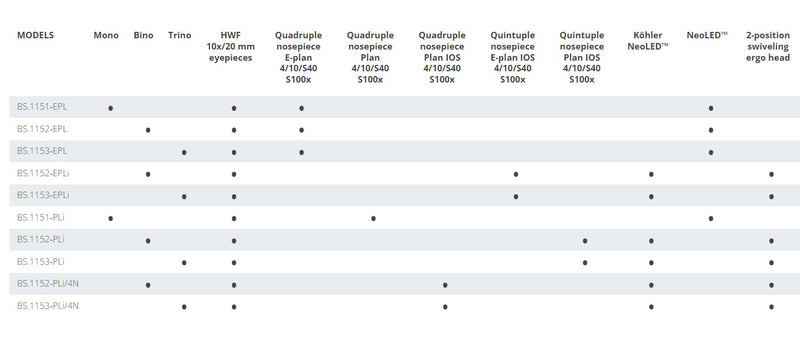

  • Monocular, binocular and trinocular models
  • Robust and attractively priced microscope
  • Digital models available
  • E-plan, Plan, E-plan IOS and Plan IOS objectives
  • Coaxial coarse and fine adjustment with adjustable rack-stop
  • Cable Storage System
  • Cardioïd mirror condenser with built-in 5 W LED

High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view. The eyepiece of monocular models is supplied with pointer

• The bScope is available with a monocular head (45° inclined Ø 23.2 mm tube) or with a Siedentopf type head, 360° rotatable, with 30° inclined Ø 23.2 mm tubes
• Binocular and trinocular models are equipped with a diopter ± 5 adjustment on left eyepiece
• The interpupillary distance is adjustable between 48 to 76 mm
• The models equipped with plan infinity corrected PLi objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431 mm) and in a low position (377 mm)
• The trinocular head comes with a Ø 23.2 mm tube, ensuring a maximum of flexibility and has a fixed light path beam splitter (20:80) and generates an erect image
• Models with an integrated USB-2.0 camera are supplied with a 5.0 MP 1/2.5” CMOS sensor with a resolution of 2592 x 1944 pixels

Revolving and reversed ball-beared quadruple or quintuple nosepiece

The state-of-the-art production techniques and multi layer coatings used for the manufacturing of the bScope objectives enables the bScope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives

•  Brightfield models: E-Plan, Plan, E-plan IOS infinity corrected, Plan IOS infinity corrected 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. Optional 60x/0.85 objective


Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

• The bScope is equipped with a scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
• The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions. The bScope can be equipped with a heating stage which can be set up to 50° Celsius by a PID temperature controller. Only available with newly purchased microscopes


The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder


The microscopes of the bScope are equipped with a 3 W NeoLED adjustable illumination system for increased light output
and a 100-240 Vac integrated power supply. On request, rechargeable batteries are also available

The 3 W adjustable Köhler NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use.The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime

Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
